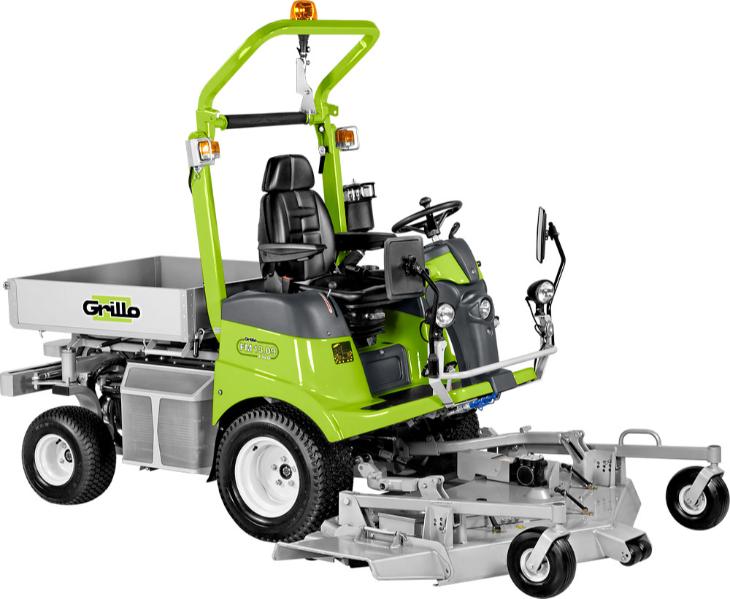

Grillo FM13.09 4WD med lad
8M4511 Grillo FM13.09 4WD med lad (excl. klipper). Sættet består af basismaskine med lad (105 x 105 cm).
Vælg frontklipper til basismaskinen her: Grillo 160 cm klipper m. bagudkast/sideudkast/BIO eller Grillo Slagleklipper 160 cm, 240 kg
Tekniske specifikationer
Motor: Yanmar 3TNV82A Stage5
Starter: Elektrisk, m. 12 V batteri
Brændstof: Diesel
Slagvolumen: 1331 ccm, 3 Cylindre
Motoreffekt: 26 hk (18.9 kW)
Luftfilter: Tørt luftfilter med udskiftelige elementer, sikkerhedsfilter og for-filter
Brændstofkapacitet: 23 liter
Hydraulik, olietank: 20 liter
Traction Hydraulic, 4-wheel drive (permanent drive even with a narrow turning radius)
Gearbox Hydrostatic transmission with 4 hydraulic engines on the 4 wheels
Clutch Clutch: electromagnetic for PTO with magnetic blade brake

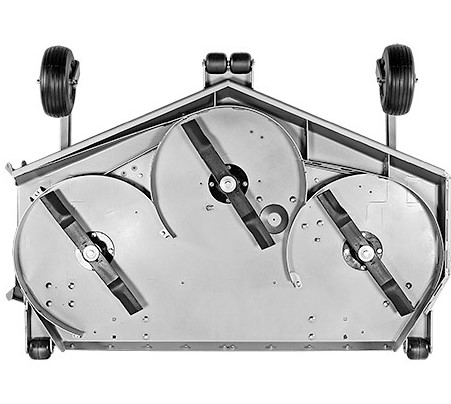

Cutter deck with rear and side discharge / mulching
Cutting deck width 160 cm
Cutting height from 2 to 10 cm
Load bed Body with tilting rear extension, manual tipping by means of gas springs. Load bed with aluminium side extensions, ground made of iron. Rear board can be opened
Differential locking Automatic differential lock and manual with push button
Front tyres 23x10.50-12 TURF WHEELS
Rear tyres 18x8.50-8 TURF WHEELS
Steering system Hydraulic drive with steering wheel
Speed From 0 to 15 km/h continuously variable
Inner turning radius 31 cm
Seat Super comfort and adjustable sprung seat with arm-rests.
Service brake Drum brake
Parking brake Drum brake
Mowing capacity per hour (indicative) 12000 m²/h
Standard features Twin-hydraulic takes-off (max. pressure 120 bar, max. capacity 34L/1’ at 2400 rpm). Lights and indicator kit
Length 325 cm
Width 192 cm
Height 175 cm
Clear span from the ground 15 cm
Weight 1102 kg (with 160 LMP cutting deck)
Se også søstermodellen Grillo FD2200 (med opsamler)
