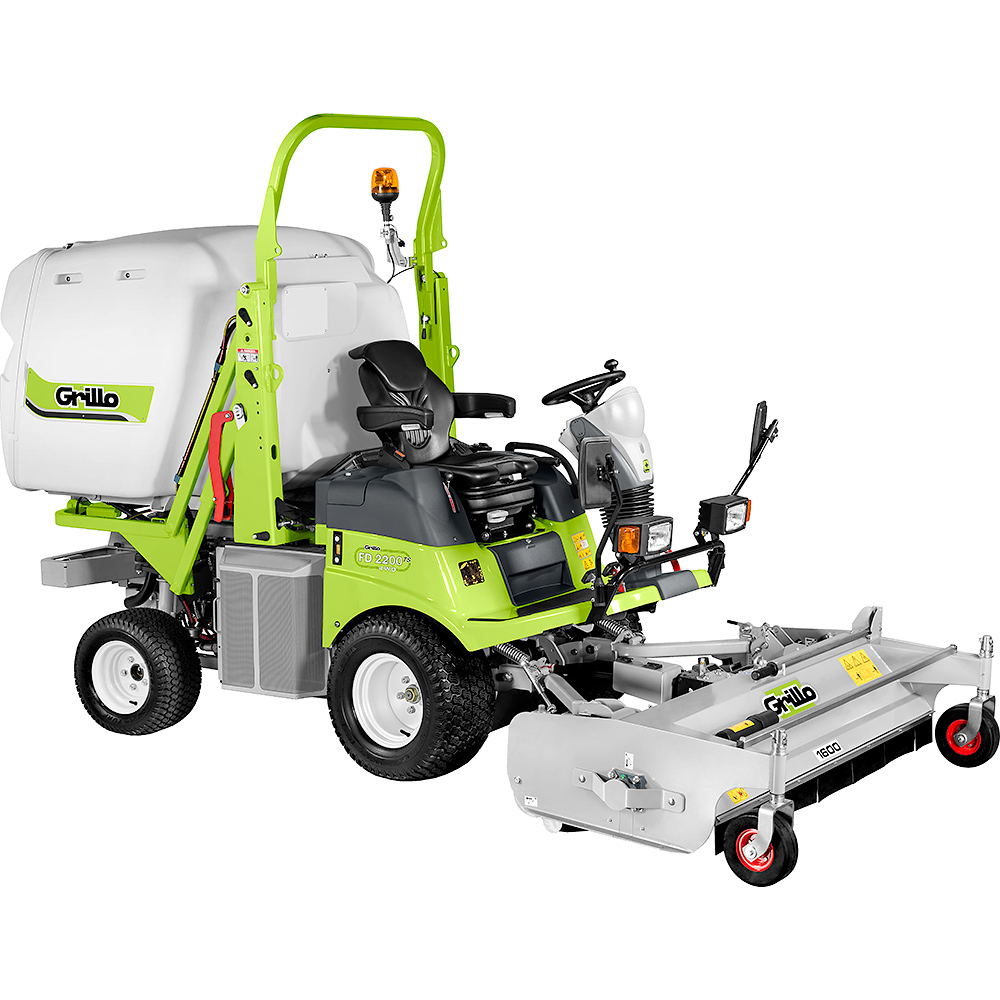

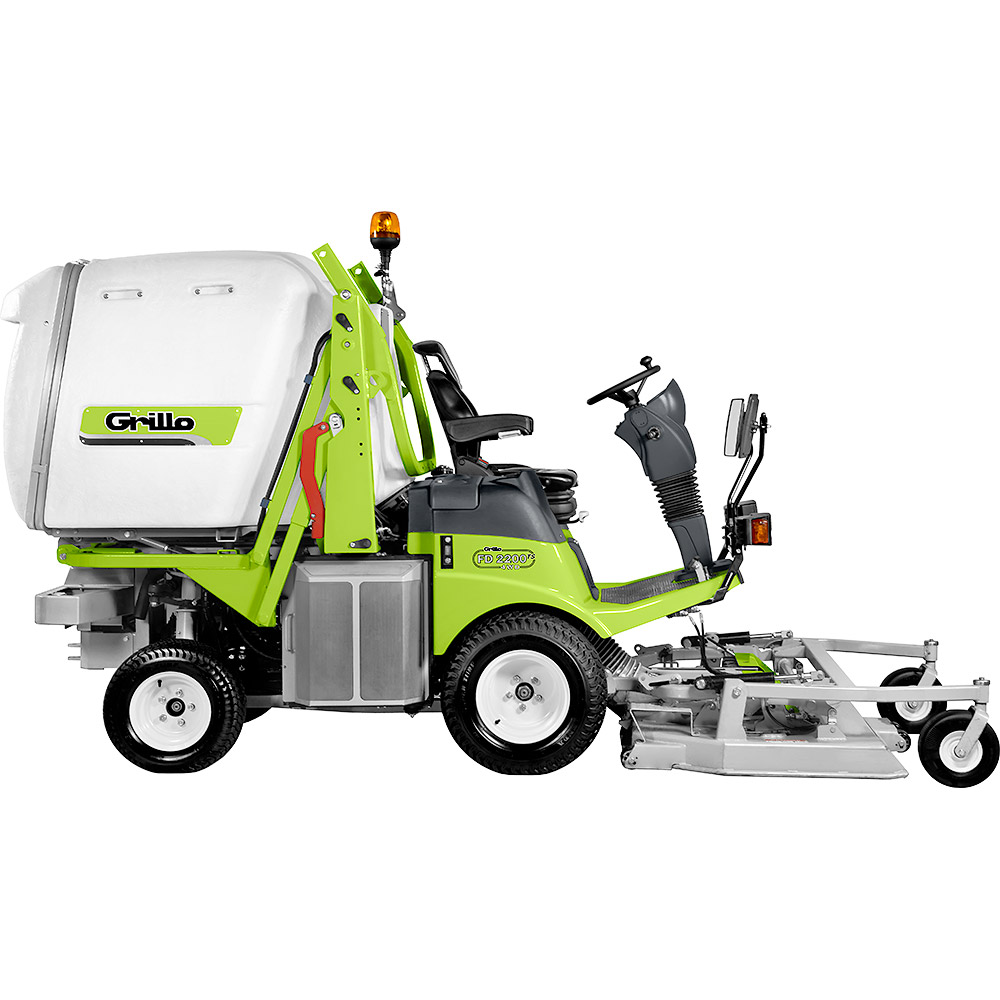

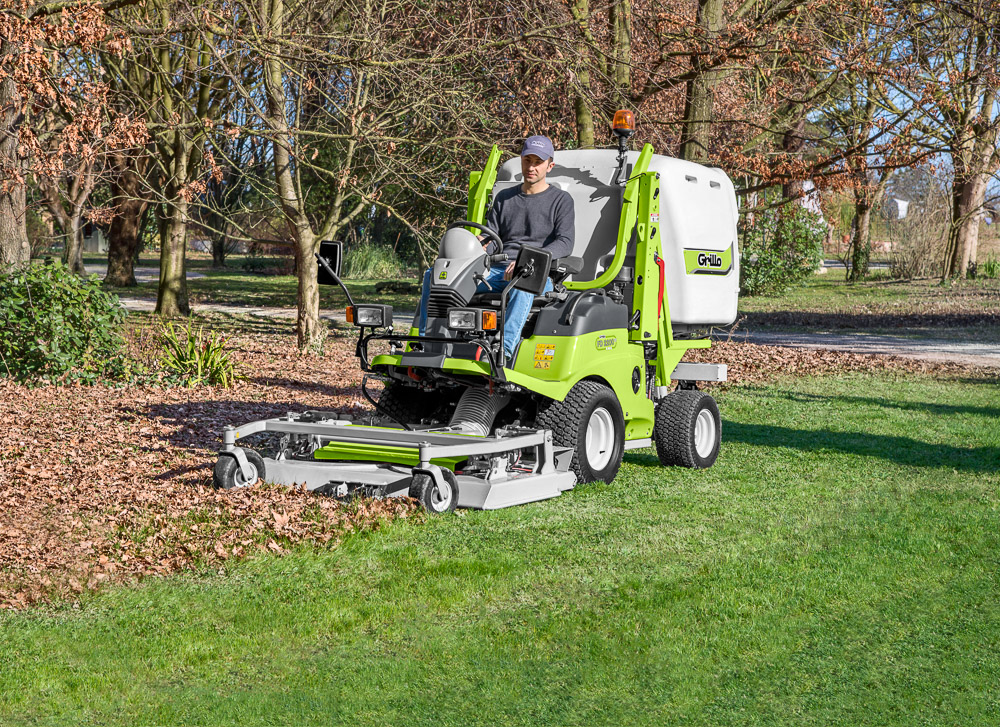

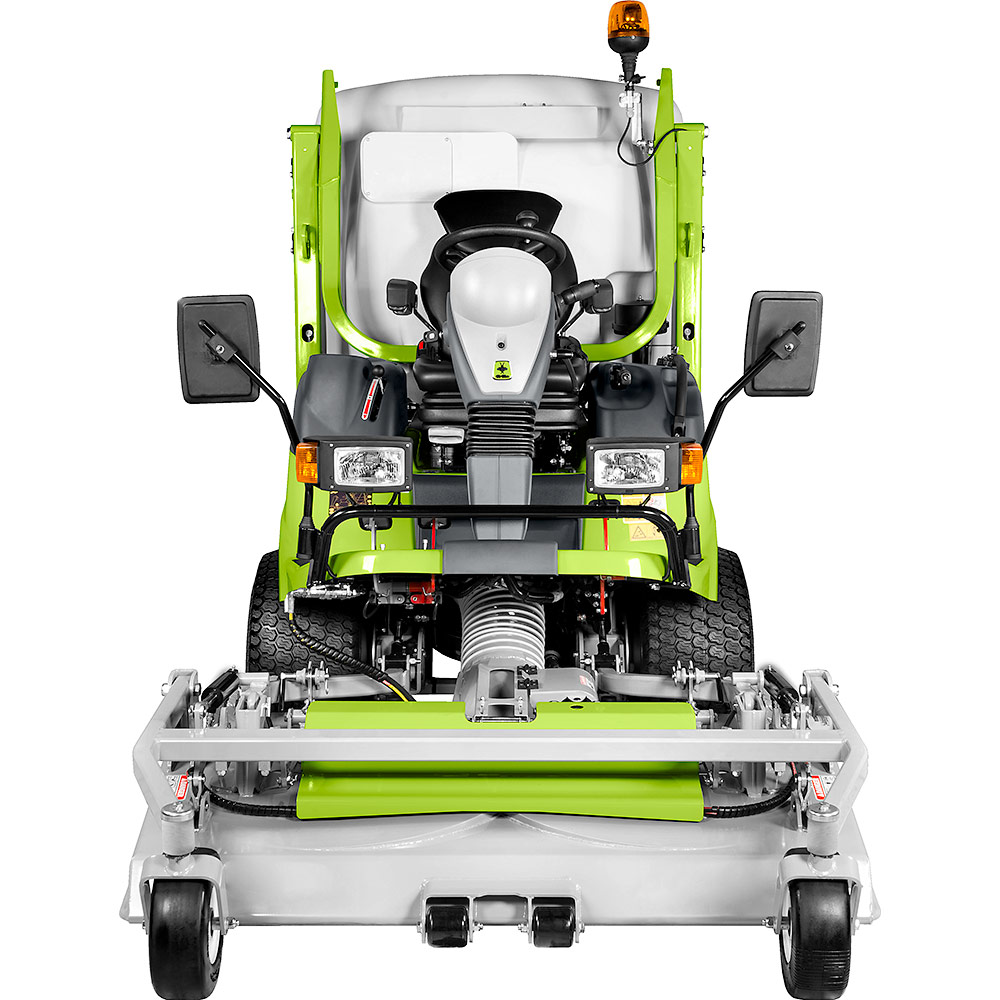

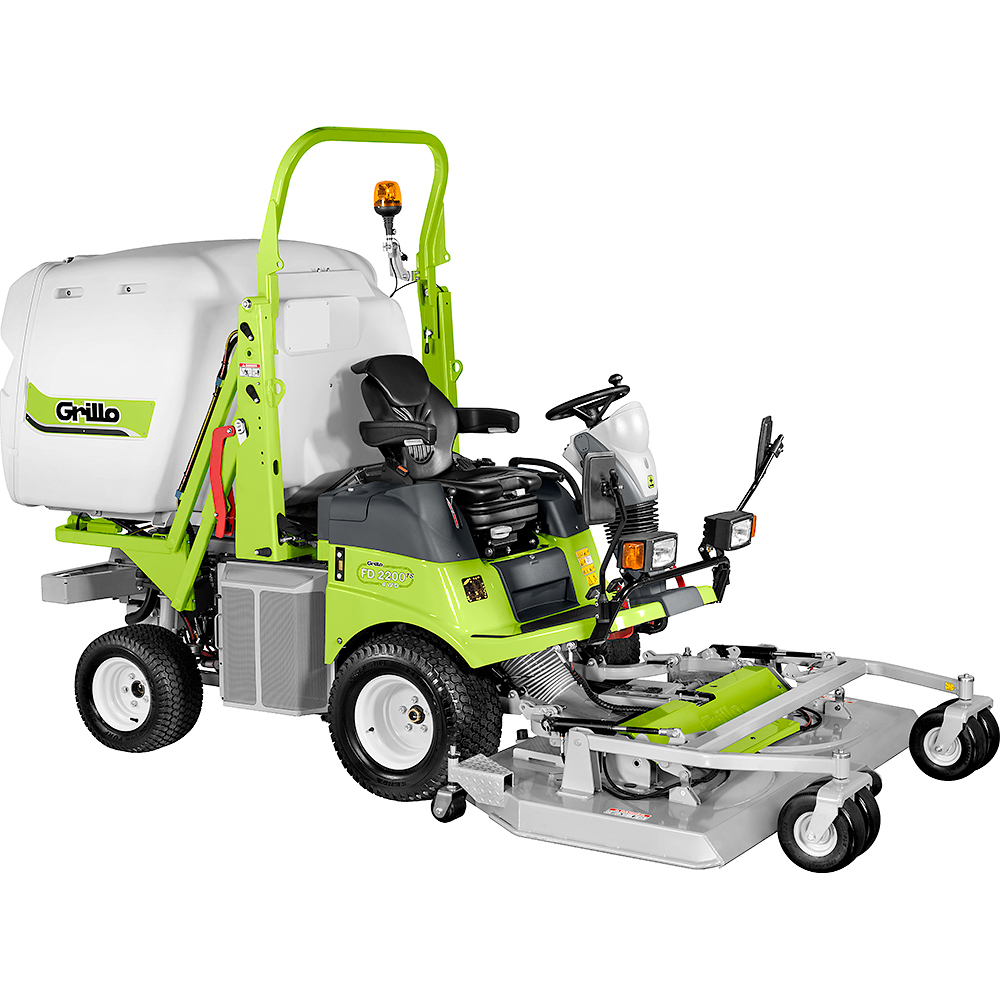

Grillo FD2200 TS 4WD, 1400 ltr. m. høj-tip

Grillo FD2200 TS 4WD, 1400 ltr. m. høj-tip Stage 5

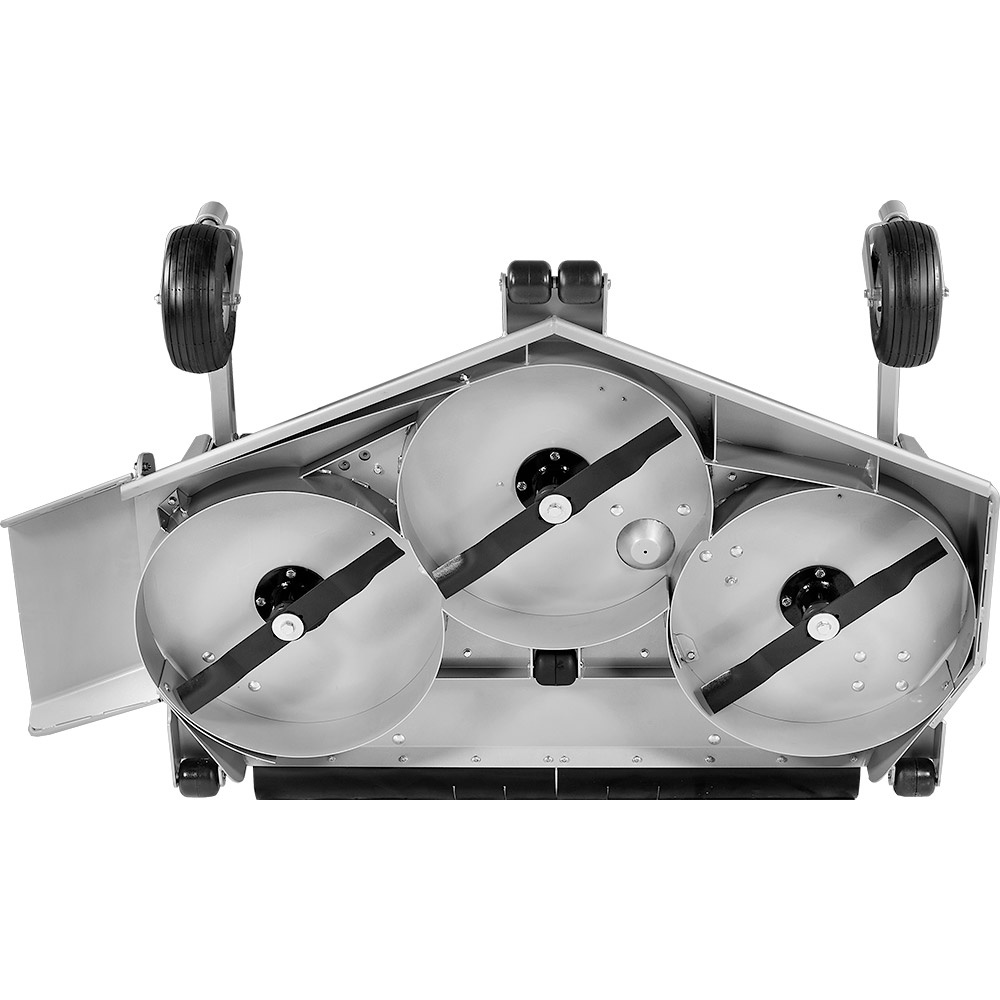

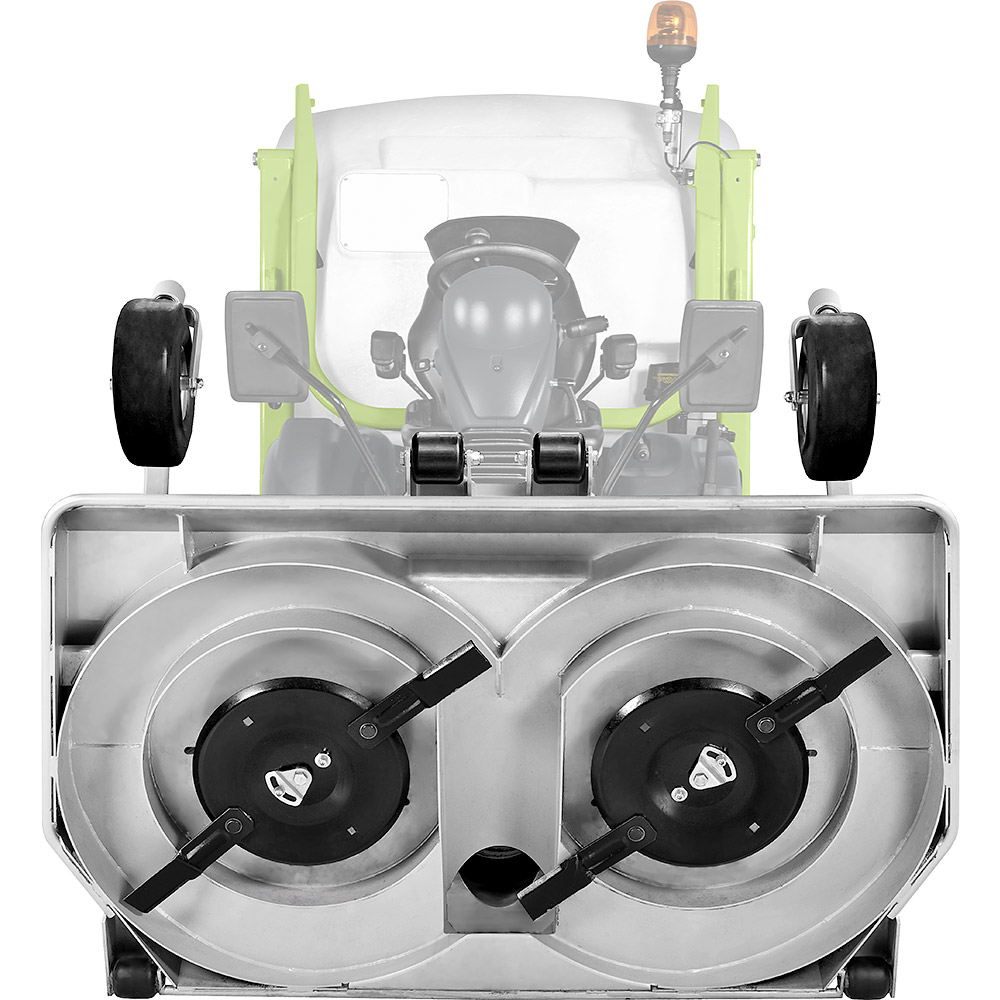

Basismaskinen kan eventuelt udstyres med en 155 cm klipper med opsamling i 1400 liter beholder med høj-tip.

Tekniske specifikationer

Engine Yanmar 4 TNV 88
Start electric, with 12 V battery
Supply diesel
Displacement 2190 cc, 4 Cylinders
Power 48 HP (36 kW)
Liquid cooled with hydraulic impeller and equipped with automatic radiator cleaning device
Dry air filter with interchangeable filter cartridges, safety filter and centrifugal prefilter
Fuel tank capacity 50 L
Hydraulic oil tank 25 L
Traction hydraulic, 4 wheel drive (permanent even with narrow turning radius)
Gearbox hydrostatic transmission with hydraulic motors on the 4 wheels
Clutch hydraulic, with electric control activated through PTO and with blade brake
Cutting height hydraulic adjustable from 2 to 12 cm

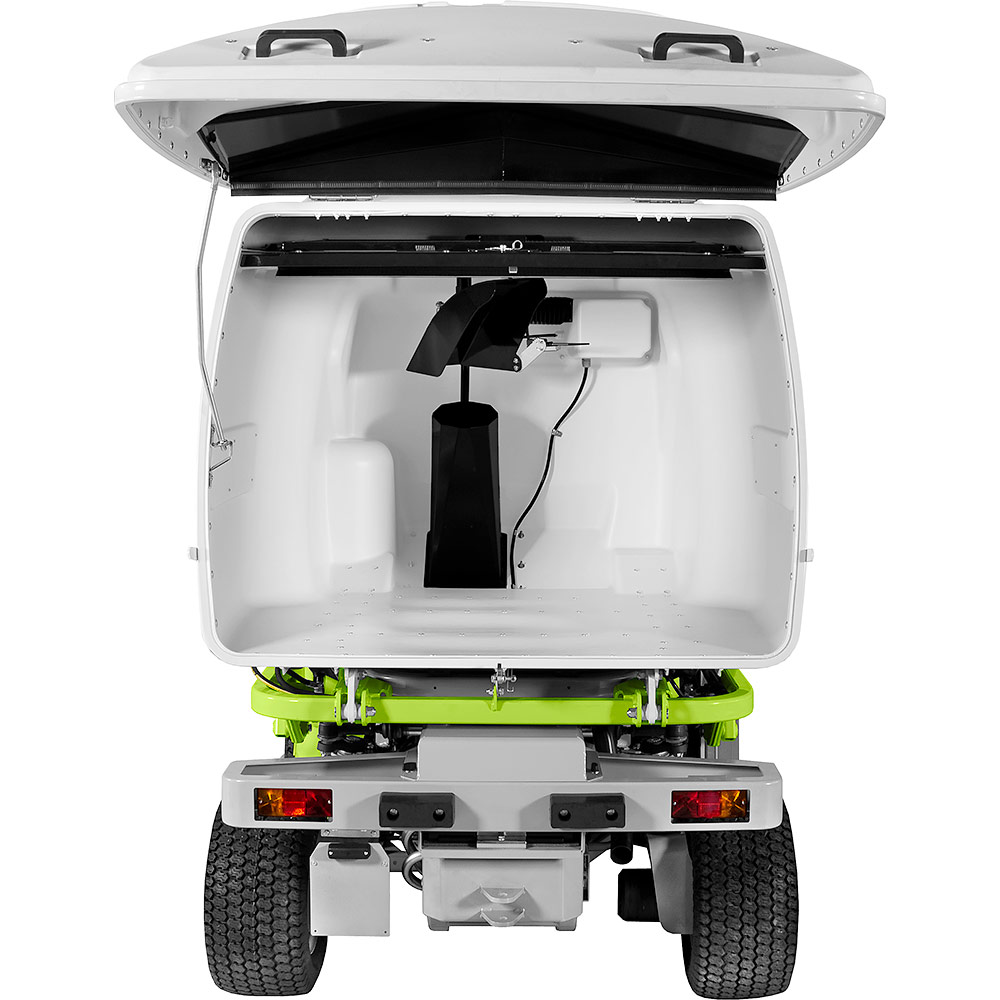

Grass collector capacity 1400 L
Grass catcher charging system Ø 400 cm (16 “) turbine with hydraulic motor fitted with a safety valve to avoid damage due to foreign objects. Turbine activation independent of the cutting deck. Double working speed.
Grass collector discharging system hydraulic grass catcher emptying with automatic opening
Maximal discharging height 230 cm
Rear projection 50 cm
Differential locking self-engaging and manual with push button
Front tyres 24x12.00-12 garden
Rear tyres 20x10.00-10 garden
Steering system steering wheel with hydraulic drive
Speed from 0 to 22 km/h continuously variable
Inner turning radius 62 cm

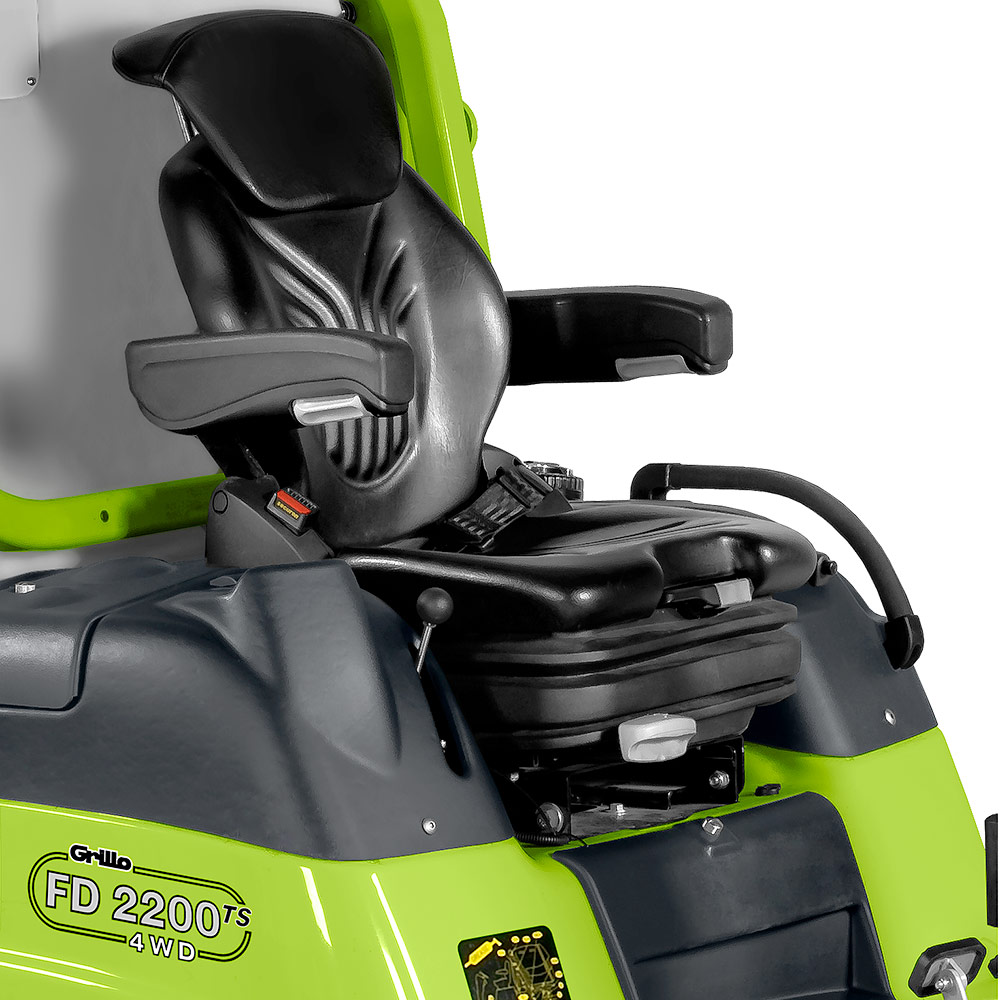

Seat super comfort adjustable and sprung seat with armrests
Mowing capacity per hour (indicative) 15500 m^2/h
Standard features automatic disengagement of blade and turbine when grass catcher is full. Hydraulic deck lifting and grass catcher emptying. Lights and indicators kit
Standard features digital display with rpm indication and safety micro-switches control
Length 260 cm without cutting deck - 352 cm with cutting deck [p/n. 9M5211]
Width 135 cm without cutting deck - 162 cm with cutting deck [p/n. 9L9611]

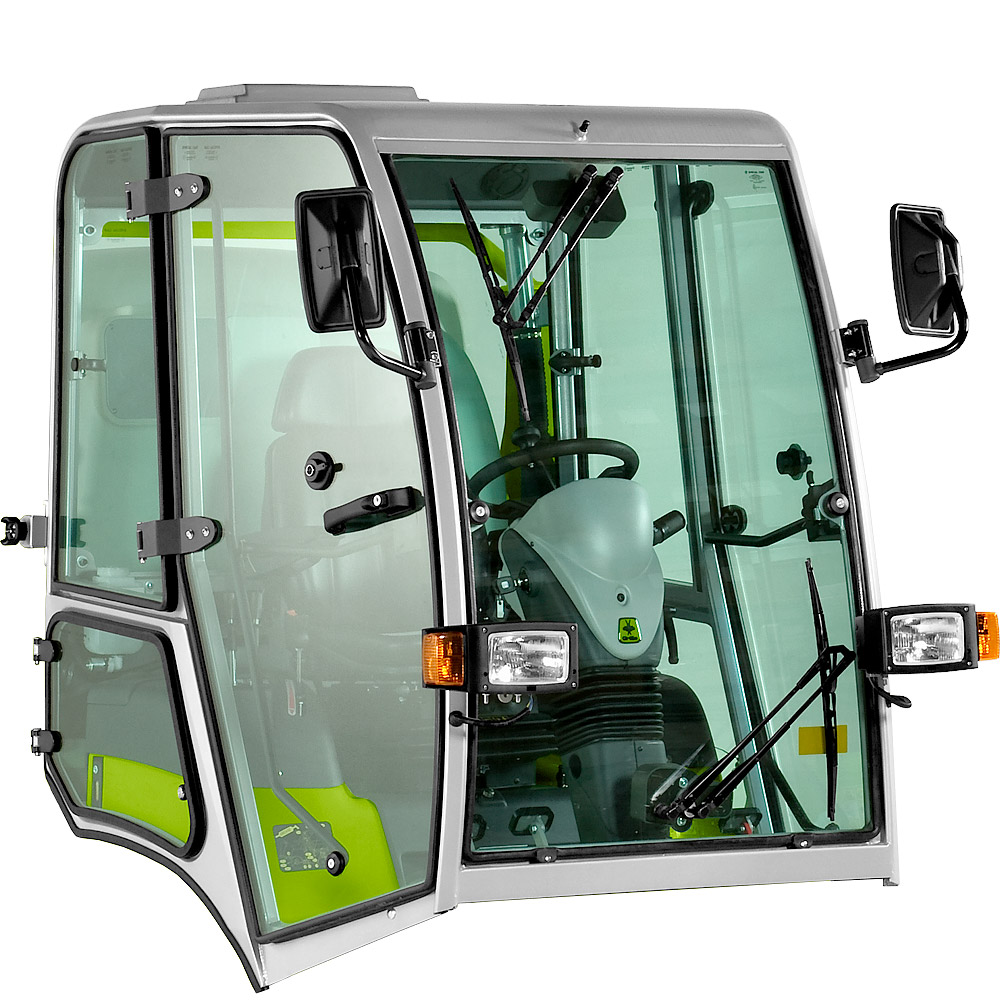

Height 183 cm (72”) (with roll bar or cabin 238 cm -94”)
Distance between axles 126 cm
Clear span from the ground 18 cm
Weight 1300 kg without cutting deck - 1571 kg [p/n. 9M5211]
